Description
Product Structure & Technical Highlights
Structural System

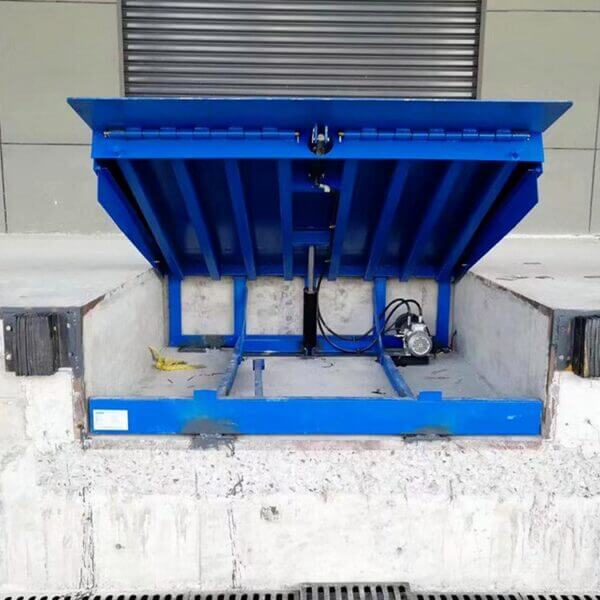

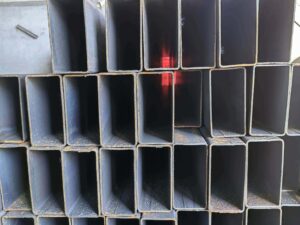

The main frame is welded with rectangular steel tubes from Shanghai Baosteel, offering high strength, excellent stability, and a lightweight design.
The working platform is reinforced with a 6mm thick steel plate, ensuring structural integrity and operational safety.
Spline shafts in rotating support points undergo quenching and tempering, enhancing surface hardness and mechanical performance, thereby extending service life.
Hydraulic System
Hydraulic cylinders are sourced from Hebei Dayu, known for their reliability and durability.
The integrated pump station combines check valves, relief valves, and solenoid valves in a compact layout to reduce leakage and maintain high performance.
Features an emergency cut-off valve, allowing safe lowering of the platform during power failure.
All seals are made by German brand “Dessef” (original imported), ensuring excellent sealing performance and durability.

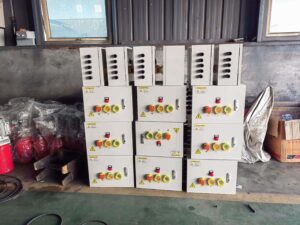

Electrical System
Operates at a safe voltage to protect personnel.
Product Model：
| Model/Parameter | DL8 | DL10 | DL12 |
|---|---|---|---|
| Tabletop | 2000mm*2500mm | 2000mm*2500mm | 2000mm*2500mm |
| Rated Load | 8 tons | 10 tons | 12 tons |
| Own Height | 600mm | 600mm | 600mm |
| Lifting Stroke | 400mm up and 300mm down | 400mm up and 300mm down | 400mm up and 300mm down |
| Tongue plate size | 2000mm*400mm | 2000mm*400mm | 2000mm*400mm |
| Pit Size | 2500mm*2030mm*610mm | 2500mm*2030mm*610mm | 2500mm*2030mm*610mm |
| Main frame of tabletop | 100*50*4mm | 100*50*4mm | 100*50*4mm |
| Workbench | 6mm checkered steel plate | 6mm checkered steel plate | 6mm checkered steel plate |
| Tongue plate | 14mm checkered plate | 14mm checkered plate | 14mm checkered plate |
| Under frame column | 80*40*4mm | 80*40*4mm | 80*40*4mm |
| Base frame | Using 10# channel steel | Using 10# channel steel | Using 10# channel steel |
| Control method | Using 24V safety control | Using 24V safety control | Using 24V safety control |
| Pump station | 1.1KW/380V/50HZ | 1.1KW/380V/50HZ | 1.1KW/380V/50HZ |
| Main cylinder | 70#*1 piece | 70#*1 piece | 70#*1 piece |
| Tongue plate cylinder | 40#*1 piece | 40#*1 piece | 40#*1 piece |
| Side skirt | 2mm steel plate | 2mm steel plate | 2mm steel plate |
| Oil tank | 8 liters | 8 liters | 8 liters |
| Hydraulic oil pipe | Rubber tube | Rubber tube | Rubber tube |
| Hydraulic oil | Hydraulic oil | Hydraulic oil | Hydraulic oil |
| Anti-collision block | 300*180*100mm | 300*180*100mm | 300*180*100mm |
| Equipment finish | Sky blue/dark gray | Sky blue/dark gray | Sky blue/dark gray |

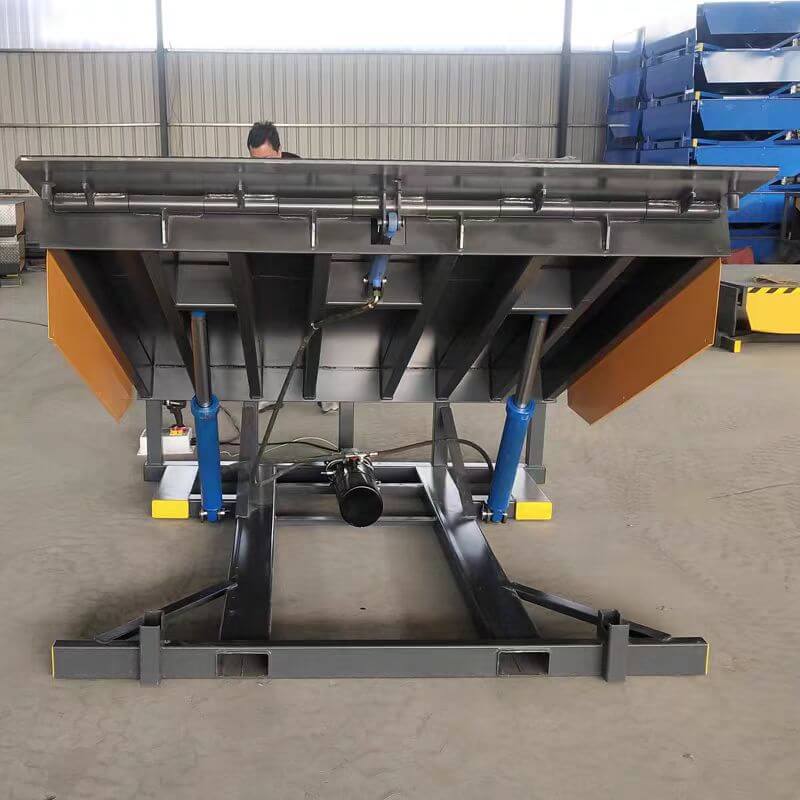

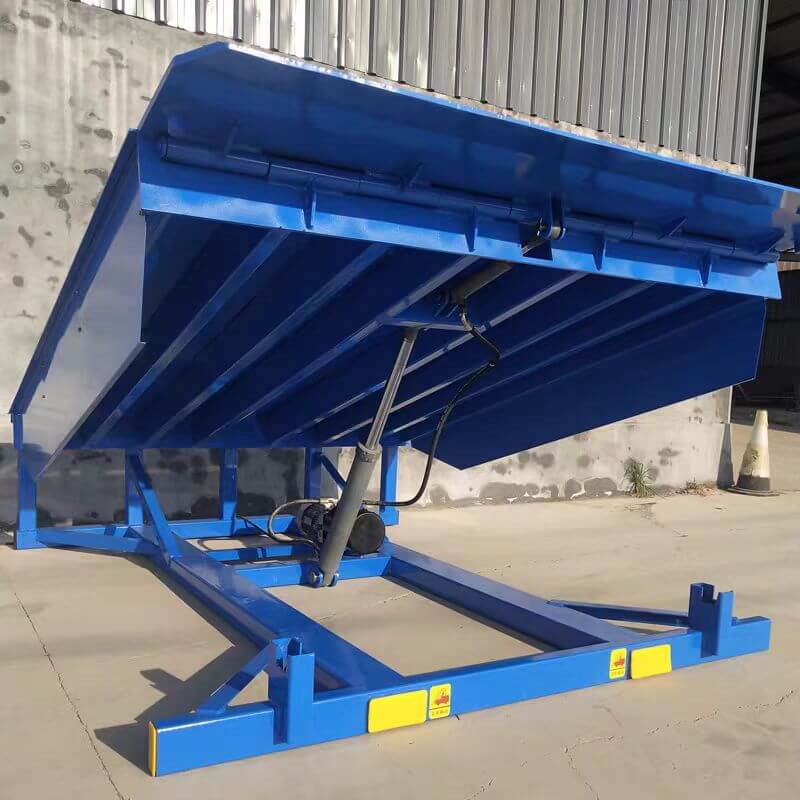

Some drawings：

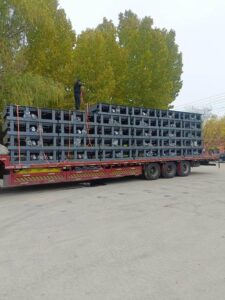

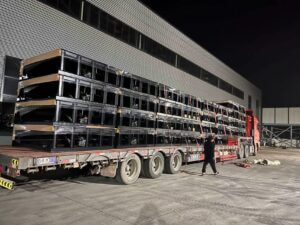

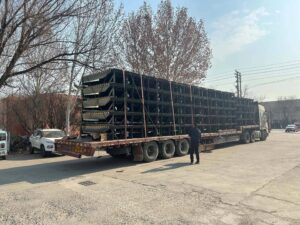

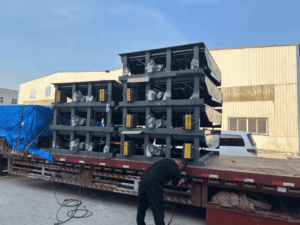

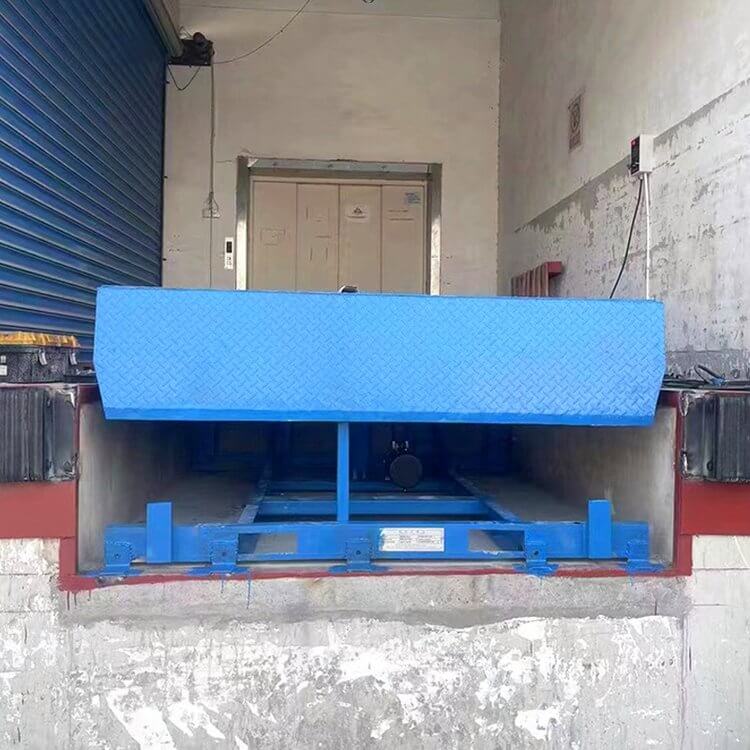

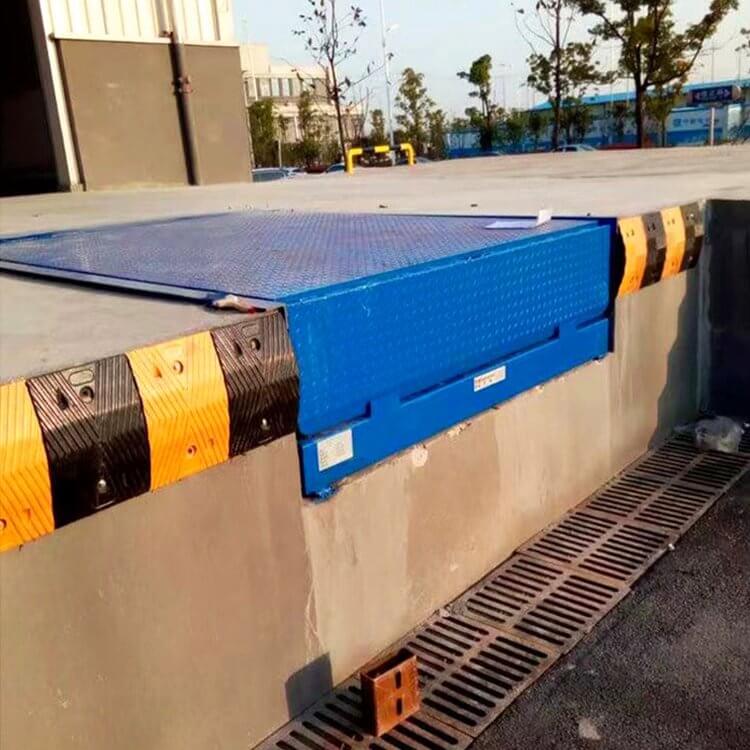

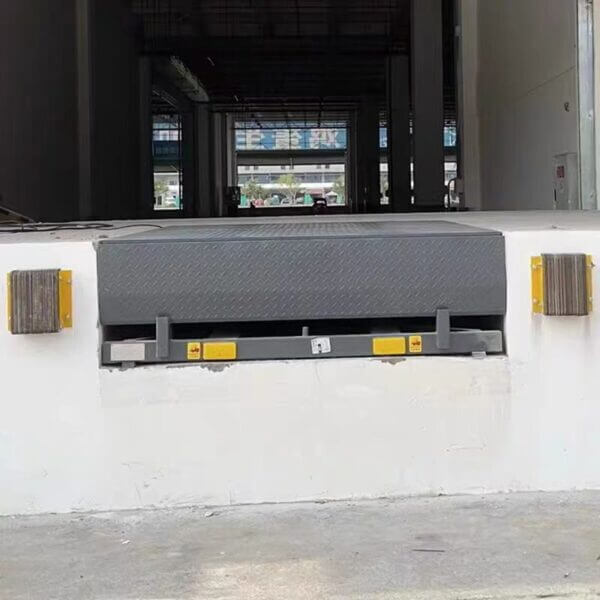

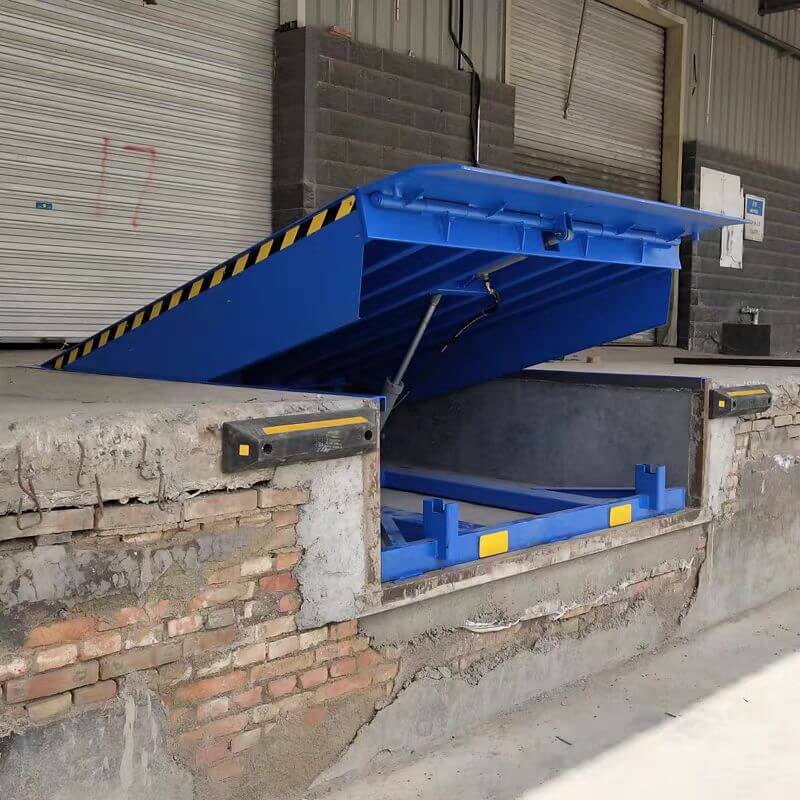

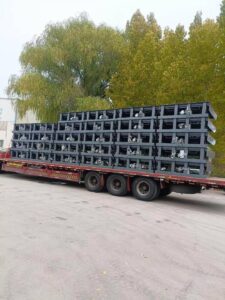

Delivery to customers：

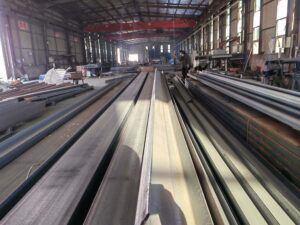

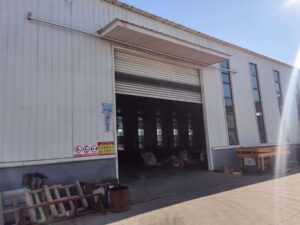

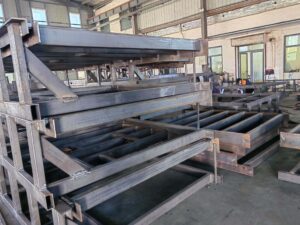

Our Factory Pictures：
